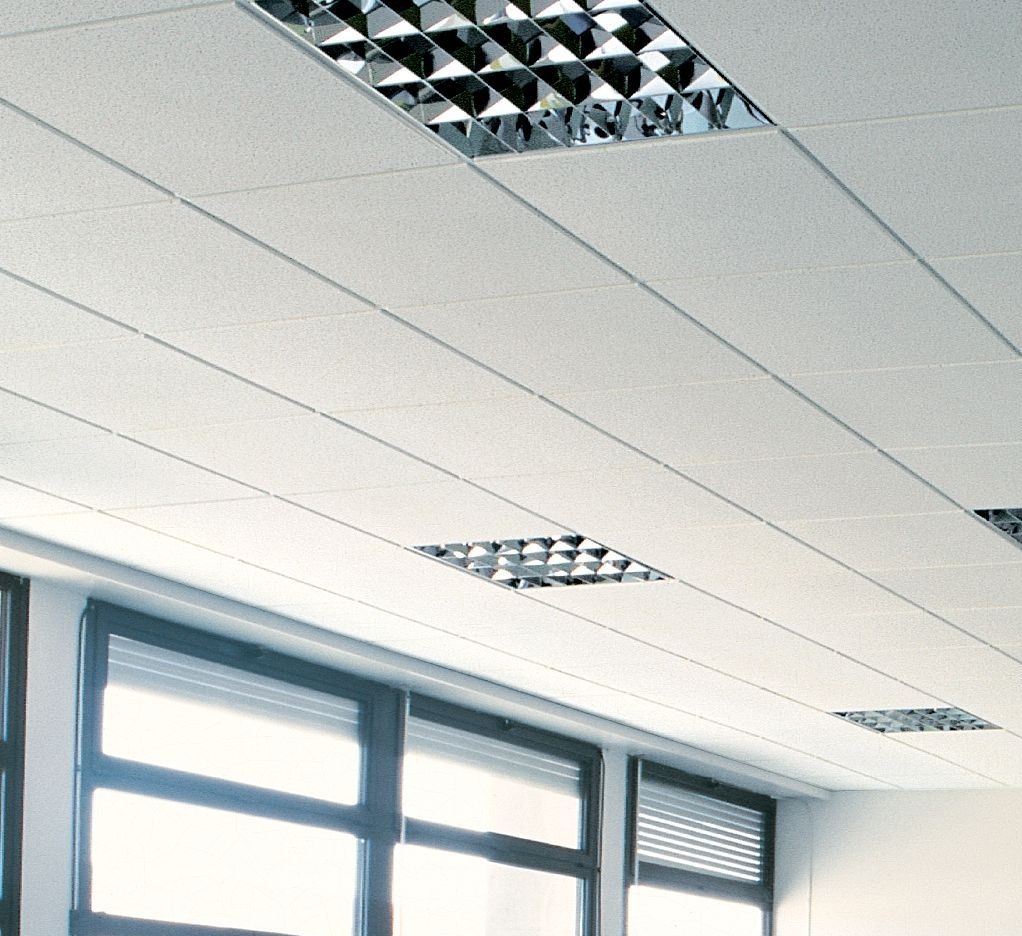

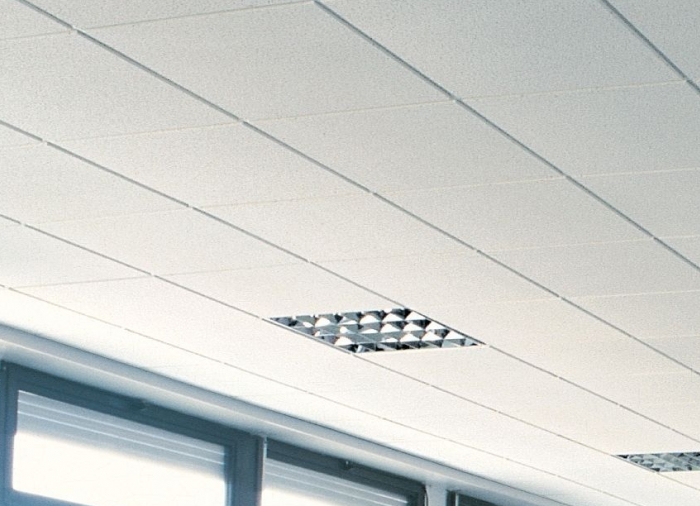

Mineral Fiber Ceiling Tile
Mineral Fiber Ceiling
Mineral fiber decorative acoustic ceiling is a high-grade interior decorative material. It has undergone the process of burdening, forming, drying, cutting, surface finishing and spray coating after being added with additive. As the high-grade interior decoration material for suspended ceilings, the product is applied to elegant interior design of high-class buildings such as hotels, restaurants, gymnasiums, office buildings, shopping malls, studios, computer rooms, airports, station, factories, hospitals and home decoration.
Color
Technical specifications
Product Description
The Mineral fiber ceiling is a high-grade interior decorative material. It has undergone the process of burdening, forming, drying, cutting, surface finishing and spray coating after being added with additive.
Application
As the high-grade interior decoration material for suspended ceilings, the product is applied to the elegant interior design of high-class buildings such as hotels, restaurants, gymnasiums, office buildings, shopping malls, studios, computer rooms, airports, station, factories, hospitals and home decoration.
Advantages
1. High humidity resistance properties
2. Excellent light reflectance
3. Environment-friendly
4. Wonderful sound-absorption
5. No content of asbestos
6. Zero release of CH2O
7. Economical Choice
8. Easy to install
9. Smooth, clean, durable finish – Washable, Scratch-resistant, Soil-resistant
10. Delicate texture coating, no color difference.
Specification
|
Material |
Wet formed mineral fiber |
|
Surface |
A variety of surface patterns available |
|
Color |
White & other color |
|
Density |
230-280kg/m3 |
|
Standard Size |
595*595mm 603*603mm 605*605mm 595*1195mm 603*1206mm 605*1210mm Size can be customized. |
|
Thickness |
6, 6.5, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 20mm |
|
Edge Detail: Square , tegular , concealed, adhesive and nail, shiplap, linear shiplap Square edge for Tegular edge for Micro-lock tegular edge for |
|
|
Noise Reduction coefficient |
NRC 0.4-0.6 depending on patterns and thickness |
|
Humidity Resistance |
>=90% |
|
Light Reflectivity |
>=95% |
Technical Data
Density (kgs/m3): 240-280kgs/m3
NRC: ≥0.45
Fire resistance: class a qualification(GB8625-88 STIPULATION)
Moisture rate (%): ≤3
Light reflect: 0.60-0.80
Bending strength(N): ≥60
Sagging resistant properties:≤
HR: ≥90%
Resistant humidity: RH90/RH85
CAC: minimum 33
Water content: ≤3%
Light reflectivity: Minimum LR 0.83
Sound absorption: EN20140-1994
Fire performance: Meet GB8624-1997 Class B1
Thermal conductivity: 0.065W/mk
Asbestos: free
Formaldehyde: free
Available Textures:
Astral Series: MA01, MA02, MA03, MA04
Perforated Series: MP01, MP02, MP03
Fissured Series: MF01, MF02
Sand Series: MS01, MS02
Customized textures are also welcome ifbuyer pays for new-mould charges.
